14 tons push force

14 tons push force

65cm cut opening

65cm cut opening

24cm knife length

24cm knife length

120cm steel frame

120cm steel frame

double gear pump

double gear pump

25 micron cartridge filter

25 micron cartridge filter

4/008 - 6T Pneumatic wheels

4/008 - 6T Pneumatic wheels

Accident prevention system up to standard

Accident prevention system up to standard

2 years warranty

2 years warranty


Specifications

  • Double pump with high speed automatic shut-off valve
  • Full cycle speed: 10 seconds
  • Wheeled on 4/008 - 6T pneumatic wheels on roller bushing
  • Fixed and highly resistant support foot
  • 120cm steel HEB beam frame
  • Tempered steel knife: 24 cm
  • Dimensions: 188 x 82 x 108
  • Weight: 170 kg

Description

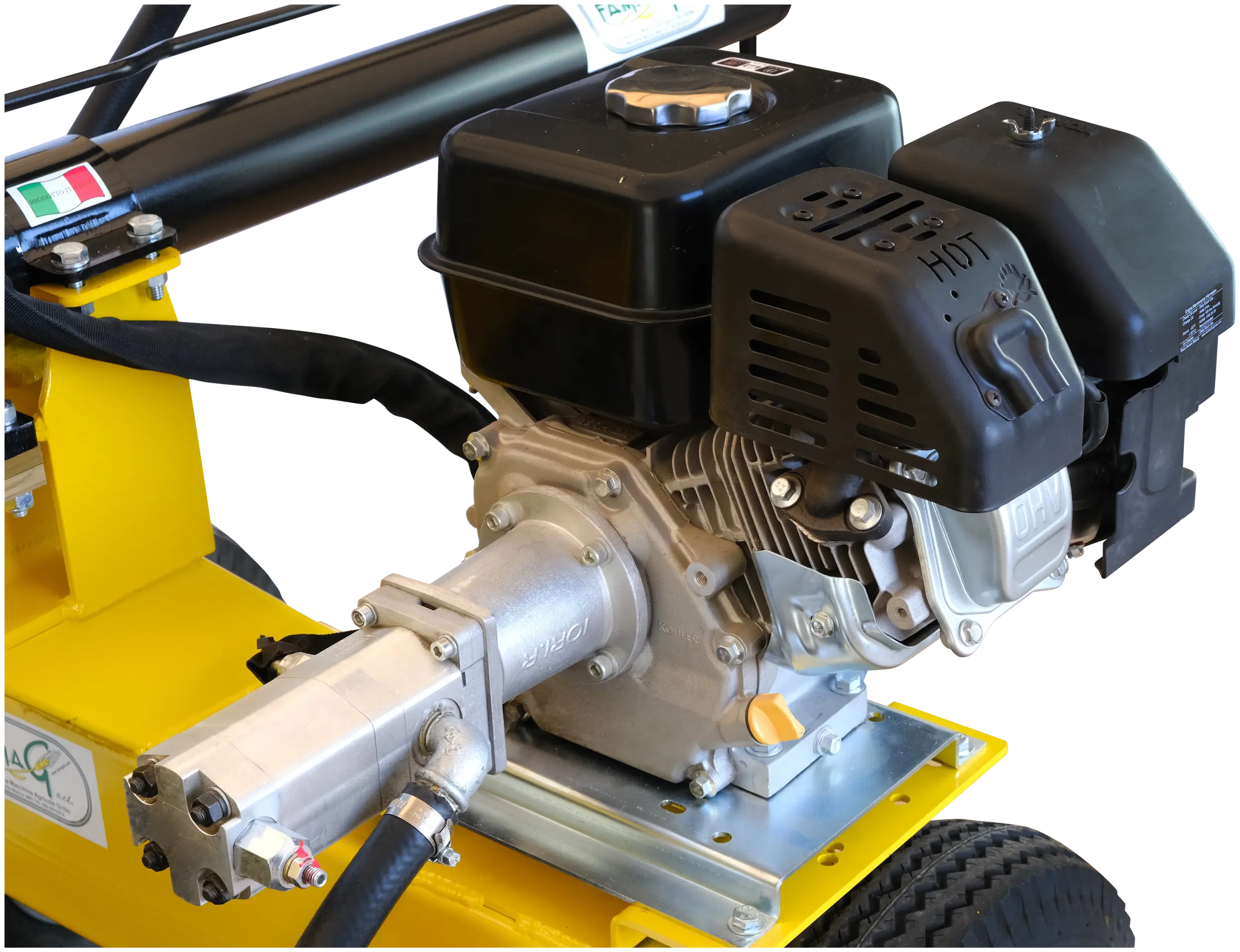

The log splitter with a thrust force of 14 Tons by FA.MAG Srl is a horizontal log splitter, the right tool for any use. Ideal for both semi-professional and private and domestic use. Equipped with a tow hook for small and medium journeys. The working position is horizontal and perfectly parallel to the support surface. The motor is placed on a plate decentralized with respect to the central axis which, instead, supports the pusher/piston/knife complex. The 2 rear wheels are fixed on pins near the base plate which supports the engine. The front part of the tool, i.e. near the knife, rests on a foldable rudder with a square base to ensure stability during working hours. The hydraulic pump is fixed directly to the engine by means of steel bolts. The main aspect of the FA.MAG log splitters is the hydraulic Pump/Motor balancing, i.e. the size of the pump is designed in such a way as to fully exploit the power of the motor and the thrust force of the piston. With a thrust force of 14 tons it allows to split logs up to a maximum of 65 cm.


It cuts any type of hard wood such as (calypso) patches, roots, dried and non-homogeneous wood in total safety, this model is semi-professional, suitable for farms, professionals in the sector but also for private use thanks to its extreme ease of operation.

Motors

  • Electric 3 HP Single-phase
  • Electric 3 HP three-phase
  • 4-stroke petrol - 6.5 HP
  • Diesel Lombardini
  • Diesel foreign import
  • Without engine (petrol or diesel engine must be mounted)
  • With three-point tractor hitch (gearbox and pump included)

On request

  • Electric start on petrol engine
  • Electric start on italian diesel engine
  • Electric start on foreign import diesel engine
  • Four-way cutting knife


To purchase it, send us an email to [email protected] or contact us here.
