SL 20 Tons
![20 tons push force](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F4e89064c-962b-43b5-adc9-410857b14713.png%2Fpower.png&w=128&q=75)
20 tons push force
![65 o 100cm cut opening](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F170ff2f4-6aca-4216-b117-dea46e01a32a.png%2Fapertura.png&w=128&q=75)
65 o 100cm cut opening
![30cm knife length](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F8626b879-eee4-45c7-96e1-6f1ebfacdfec.png%2Fcoltello.png&w=128&q=75)
30cm knife length
![140cm steel frame](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2Fc865fb28-e611-4847-9f3b-d90fc3de226f.png%2Ftelaio.png&w=128&q=75)
140cm steel frame
![double gear pump](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F1d88897d-44b1-4ec6-9af4-a4c36c1ba23c.png%2Fspeed.png&w=128&q=75)
double gear pump
![25 micron cartridge filter](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F4701872a-6680-4c16-bfab-37ef2a613ea6.png%2Fcilindro.png&w=128&q=75)
25 micron cartridge filter
![4/008 - 6T Pneumatic wheels](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2Ff5995991-bbae-400b-a16d-1a38941fa55b.png%2Fruota.png&w=128&q=75)
4/008 - 6T Pneumatic wheels
![Accident prevention system up to standard](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F10708067-df4a-417d-b934-472504c59e6b.png%2Fce.png&w=128&q=75)
Accident prevention system up to standard
![2 years warranty](/_next/image/?url=https%3A%2F%2Fcms-famagsrl.web.pickpic.dev%2Fassets%2F995a3a5e-f0e6-4c00-afcb-c8e714605c54.png%2Fgaranzia.png&w=128&q=75)
2 years warranty
Specifications
- Double pump with high speed automatic shut-off valve
- Full cycle speed: 11/14 seconds
- Wheeled on 4/008 - 6T pneumatic wheels on roller bushing
- Foldable and highly resistant support foot
- 140cm HEB steel beam frame
- Tempered steel knife: 30 cm
- 650 series dimensions: 200 x 90 x 110
- Weight of the 650 series: 270 kg
- 1000 series dimensions: 260 x 90 x 110
- Weight 1000 series: 300 kg
Description

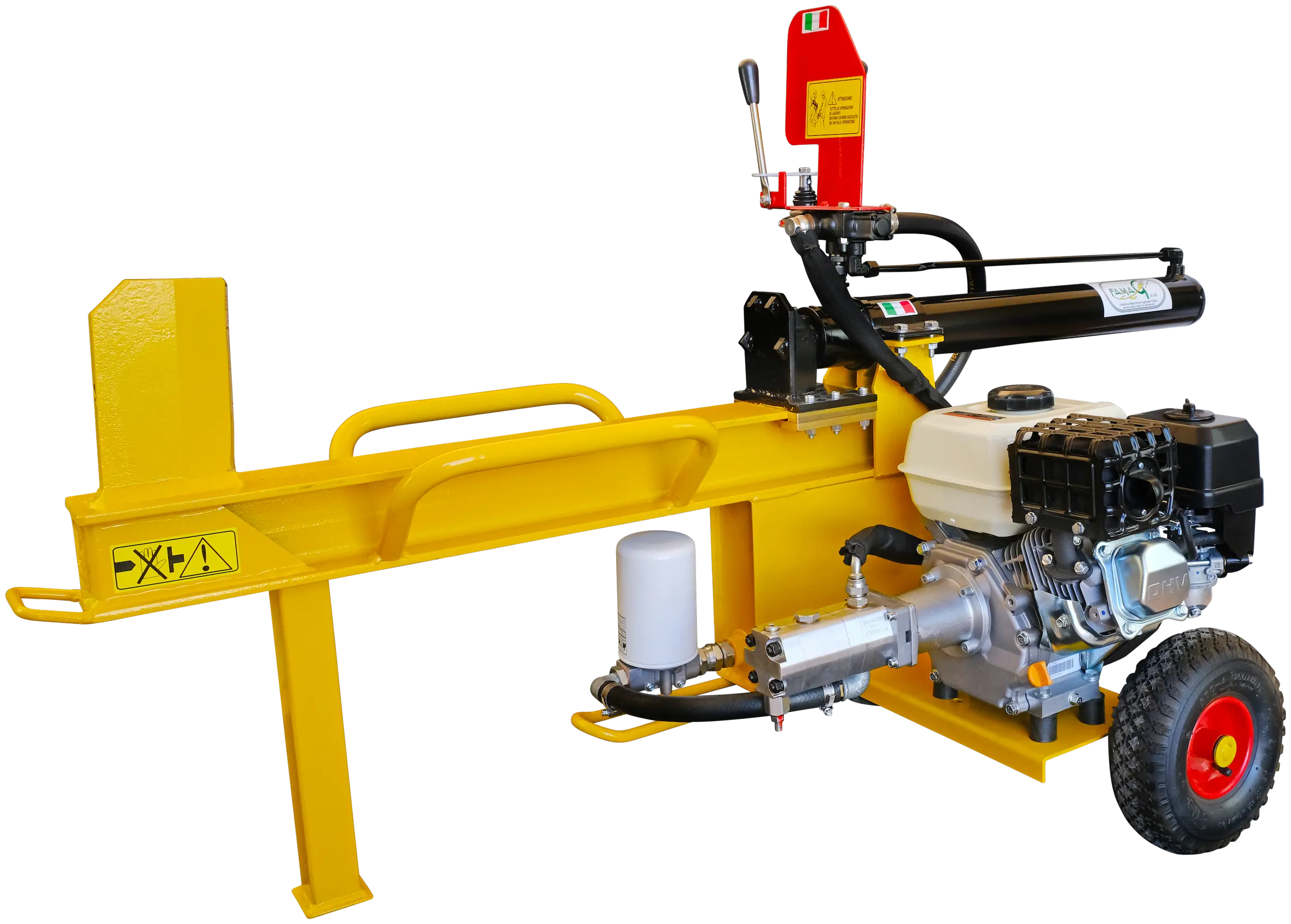

The log splitter with a thrust force of 20 Tons by FA.MAG Srl is a horizontal log splitter, the right tool for any use. Facilitates and speeds up the work. Designed for farms, professionals in the sector and those who work wood as a profession. Equipped with a tow hook for small and medium journeys. The working position is horizontal and perfectly parallel to the support surface. The motor is placed on a plate decentralized with respect to the central axis which, instead, supports the pusher/piston/knife complex. The 2 rear wheels are fixed on pins near the base plate which supports the engine. The front part of the tool, i.e. near the knife, rests on a foldable rudder with a square base to ensure stability during working hours. The hydraulic pump is fixed directly to the engine by means of steel bolts. The main aspect of the FA.MAG log splitters is the hydraulic Pump/Motor balancing, i.e. the size of the pump is designed in such a way as to fully exploit the power of the motor and the thrust force of the piston. With a thrust force of 20 tons it allows to split logs up to a maximum of 65 cm or 100 cm, depending on the model.
It cuts any type of hard wood such as (calypso) patches, roots, dried and non-homogeneous wood in total safety, this model is semi-professional, suitable for farms, professionals in the sector but also for private use thanks to its extreme ease of operation.
Motors
- Electric 5.5 HP three-phase
- 4-stroke petrol - 6.5 HP
- Diesel Lombardini
- Diesel foreign import
- Without engine (petrol or diesel engine must be mounted)
- With three-point tractor hitch (gearbox and pump included)
On request
- Electric start on petrol engine
- Electric start on italian diesel engine
- Electric start on foreign import diesel engine
- Four-way cutting knife
To purchase it, send us an email to [email protected] or contact us here.
